Industrial TFT Display, TM150TDSG70 BOE 15 Inch 1024*768 Dots TFT LCD Display Module TN, Normally White, Transmissive
TM150TDSG70 BOE 15 Inch 1024*768 Dots Industrial TFT Display Key Specifications Special Features:
| Panel Size: | 15 Inch | Brand: | Tianma |
| Resolution: | 1024 X 768 Dots | Best View On: | 12 O'clock |
| Outline Dimension: | 326.5(W)×253.5(H) ×12.1(D) Mm | Active Area Size: | 304.128(W)×228.096(H) Mm |
| Brightness: | 300 Cd/m² | Contrast Ratio: | 600:1 |
| Operating Temp.: | -20 ~ 70 °C | Storage Temp.: | -30 ~ 80 °C |
- TM150TDSG70 is a 15.0" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen.
- It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²).
- It's general features are summarized in the following: Lamp Repaceable, WLED Backlight, With LED Driver, 180° Reverse, 6/8 bit, Matte.
- Based on its features,we recommend that this model be applied to Industrial etc.
Panel Brand TIANMA
Panel Model TM150TDSG70
Panel Size 15.0"
Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768, XGA, 85PPI
Pixel Format RGB Vertical Stripe
Display Area 304.128(W)×228.096(H) mm
Bezel Opening 307.4(W)×231.3(H) mm
Outline Size 326.5(W)×253.5(H) ×12.1(D) mm
Surface Antiglare
Brightness 300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 12 o'clock
Response Time 8 (Typ.)(Tr+Td)
Display Colors 262K/16.7M 60% NTSC
Lamp Type WLED , 30K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 1.00Kgs (Typ.)
Application Industrial
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
TM150TDSG70 BOE 15 Inch 1024*768 Dots Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
TM150TDSG70 BOE 15 Inch 1024*768 Dots Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
TM150TDSG70 BOE 15 Inch 1024*768 Dots Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

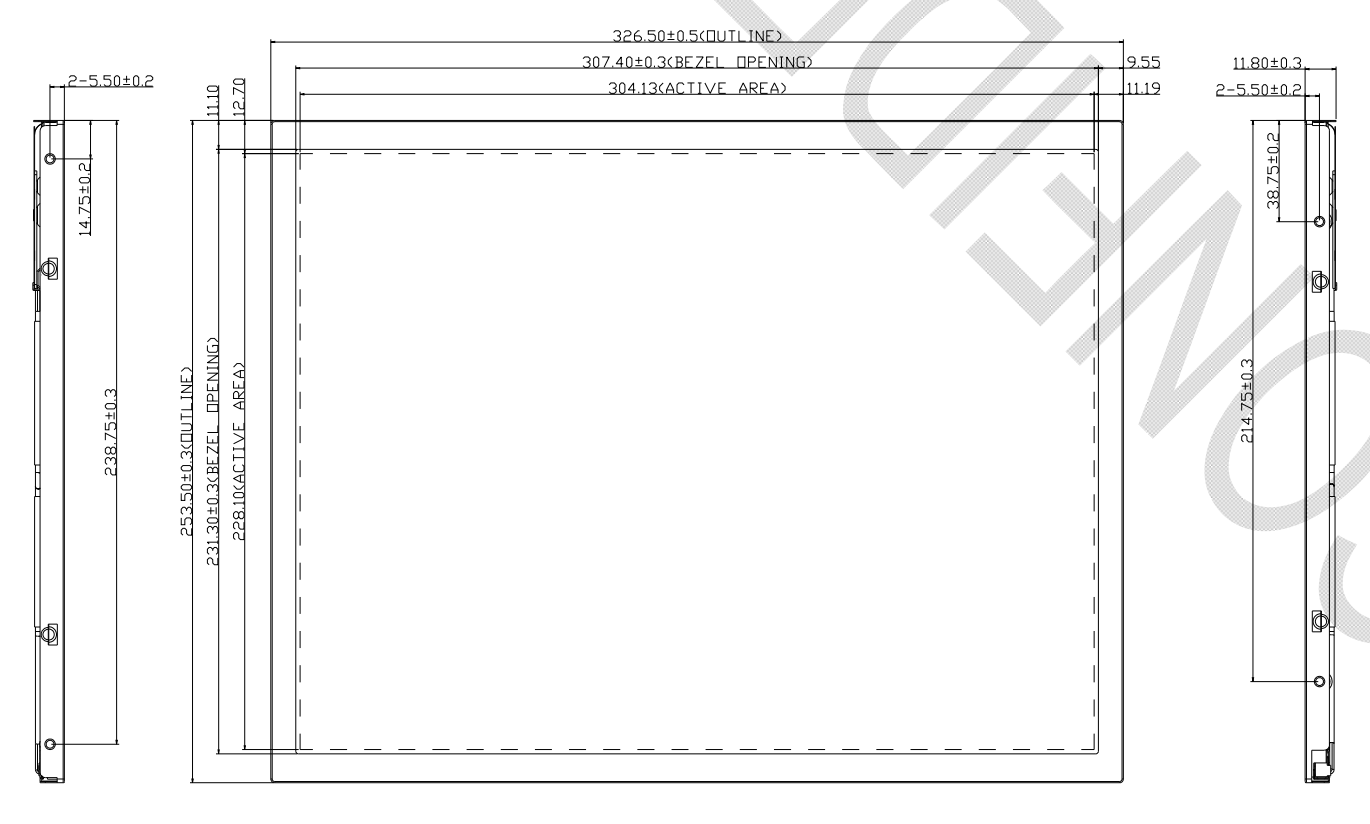

TM150TDSG70 BOE 15 Inch 1024*768 Dots Industrial TFT Display Mechanical Drawing
